Features and Benefits:

• Capacity: 9,000 LB.

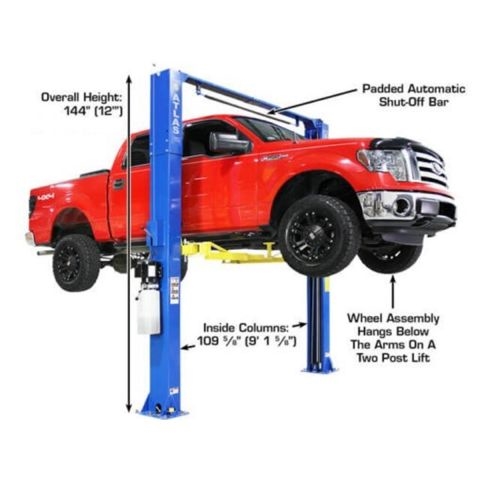

• Overall Height: 142" (11' 10")
• Overall Floor Width: 133 1/2" (11' 1 1/2")

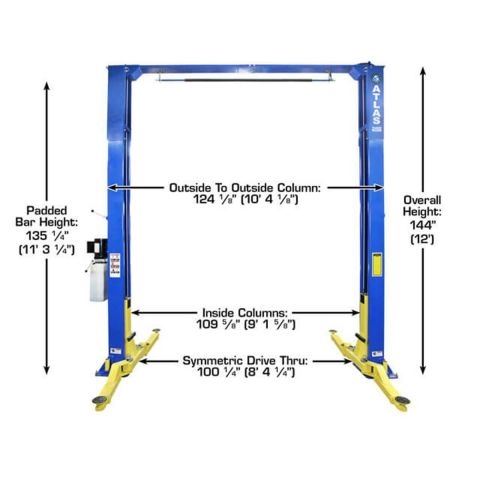

• Outside Column to Outside Column: 125 1/2" (10' 5 1/2")

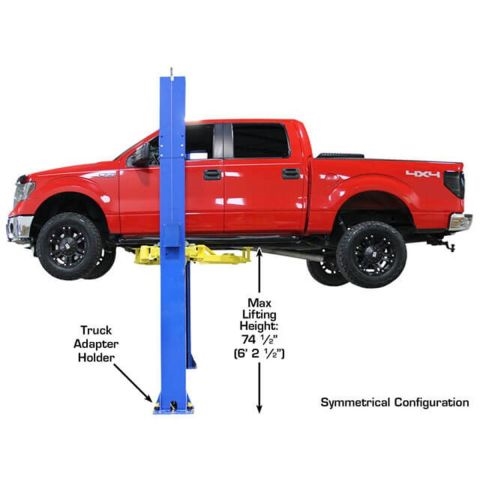

• Maximum Lift Height (Without Adapters): 76 3/4"
• Maximum Lift Height (With Adapters): 87 3/4"
• Minimum Arm Height: 4"
• Inside Column: 109 1/2” (9' 1 1/2”)

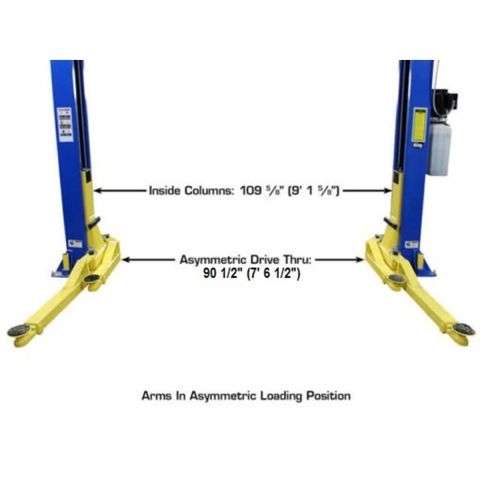

• Drive Thru: 100 1/2” (8' 4 1/2”)
• Column Size: 8" x 9 3/8"
• Base Of Lift: 16 3/4" x 17 3/4"
• Motor/Electrical Requirement: 220 volt single (1) phase.A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight: 1,430 LBS.
• Adapter Heights: 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size: 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating
